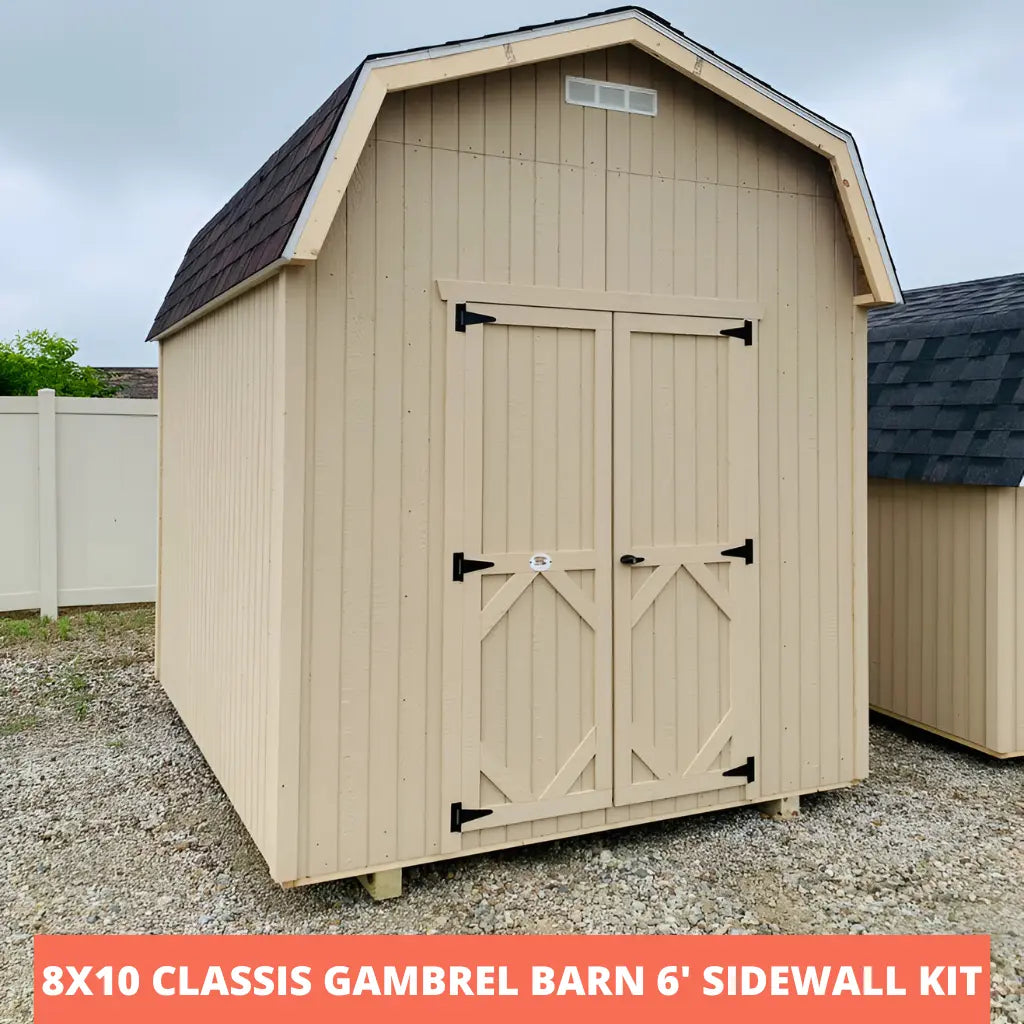

Little Cottage Co. Classic Gambrel Barn 6' Sidewall
Build your dream garden and add value to your property, with our Classic Style Garden Sheds!
Lead time for production is 5-10 business days for precut kits and 4-6 weeks for panelized kits. Your shed will be delivered in 2-9 days depending on the distance from our site in Ohio to your home.
Want to order now, but have your shed shipped next spring once the weather is better? Order now to lock in the current price before the cost goes up. Pay only 10% deposit and the remaining amount when your shed is ready to ship in the spring. Contact us for additional details.
Shield your precious tools and outdoor gear from volatile weather conditions with our Amish Classic Gambrel Barn 6-Foot Sidewall Kit. This enduring wooden structure is an ideal fit for any home or garden, regardless of its dimensions. You'll benefit from an abundance of additional storage room and the reassurance that all your belongings are shielded from elements like rain, sunlight, and snow. Don't delay until the damage is done - secure the best protection now with our classic barn kit.
Panelized Kits: Come in pre-assembled panelized sections. Wall siding is already attached to the wall framing. Already pre-assembled as much as possible before shipped to you. Easier to put together and saves significant time. All hardware and screws are included.
Pre-Cut Kits: Comes with all wood pre-cut to exact lengths. No cutting required. You must assemble the pieces into sections and then put the sections together. All hardware and screws are included. No Customizations on Pre-Cut Structures.
IMPORTANT NOTE:
You are required to offload the shipment - either a forklift or 2-3 people on the day of the delivery to manually unload the pieces on the pallet one by one. Each individual piece weighs around 1-100 lbs. so it is fairly easy to do with 2-3 people. Some customers have friends/neighbors/family assist, or hire 2 people. FedEx will schedule the delivery date and time that works for you.
SPECIFICATIONS
| Size | Inside Height | Floor Dimension | Outside Width | Outside Depth | Door Opening | Sidewall | Height at Peak |
|---|---|---|---|---|---|---|---|
| 8' x 8' | 107" | 8' x 8' | 8' 1" | 8' 1" | 48" x 72" | 72" | 114" |
| 8' x 10' | 107" | 8' x 10' | 8' 1" | 10' 1" | 48" x 72" | 72" | 114" |
| 8' x 12' | 107" | 8' x 12' | 8' 1" | 12' 1" | 48" x 72" | 72" | 114" |
| 8' x 14' | 107" | 8' x 14' | 8' 1" | 14' 1" | 48" x 72" | 72" | 114" |
| 8' x 16' | 107" | 8' x 16' | 8' 1" | 16' 1" | 48" x 72" | 72" | 114" |
| 10' x 10' | 113" | 10' x 10' | 10' 1" | 10' 1" | 60" x 72" | 72" | 120" |
| 10' x 12' | 113" | 10' x 12' | 10' 1" | 12' 1" | 60" x 72" | 72" | 120" |
| 10' x 14' | 113" | 10' x 14' | 10' 1" | 14' 1" | 60" x 72" | 72" | 120" |
| 10' x 16' | 113" | 10' x 16' | 10' 1" | 16' 1" | 60" x 72" | 72" | 120" |
| 10' x 18' | 113" | 10' x 18' | 10' 1" | 18' 1" | 60" x 72" | 72" | 120" |
| 10' x 20' | 113" | 10' x 20' | 10' 1" | 20' 1" | 60" x 72" | 72" | 120" |
| 12' x 12' | 118" | 12' x 12' | 12' 1" | 12' 1" | 60" x 72" | 72" | 125" |
| 12' x 14' | 118" | 12' x 14' | 12' 1" | 14' 1" | 60" x 72" | 72" | 125" |
| 12' x 16' | 118" | 12' x 16' | 12' 1" | 16' 1" | 60" x 72" | 72" | 125" |
| 12' x 18' | 118" | 12' x 18' | 12' 1" | 18' 1" | 60" x 72" | 72" | 125" |
| 12' x 20' | 118" | 12' x 20' | 12' 1" | 20' 1" | 60" x 72" | 72" | 125" |
| 12' x 24' | 118" | 12' x 24' | 12' 1" | 24' 1" | 60" x 72" | 75" | 125" |
FEATURES
- Amish craftsmanship ensures each unit is built with the highest level of quality and precision.
- Each prefabbed unit arrives ready to assemble, so no additional cutting is required.
- The shed's roof is designed with a 5/12" pitch, providing better water runoff and adding to the shed's overall durability.
- 6′ Sidewalls with 16″ o.c. wall studs for superior sturdiness and stability.
- The double-door opening is 5' x 6' for 10 ft. to 12 ft. wide units and 4" x 6" for 8 ft. wide units.
- 2 Gable vents are included, along with a locking door handle for added security.
- All necessary screws, latches, and nails are provided to make assembly easier.
- The premium LP smart side paneling is treated to resist fungal decay and insect infestation, primed and ready for paint
Classic Gambrel Barn Shed Kit SmartSiding walls
SmartSide Siding
SmartSide® products deliver all the warmth and beauty of traditional wood while delivering the enhanced durability and workability of engineered wood. With SmartGuard® technology, these products are built to outperform nature, providing exceptional strength, performance, and resistance against rot, termites, woodpeckers, hail, as well as the challenges posed by humid summers and cold winters. We’re proud to offer SmartSide® standard on all of our buildings.
Key Advantages
- 50-year prorated, limited warranty
- Treated with a Zinc Borate treatment
- Resistant to fungal decay and termite damage
- Attractive overlay on the interior
- Primed face
| Value Gambrel Barn 6' Sidewall | Classic Gambrel Barn 6' Sidewall |
| Offered in PRECUT only | Offered in PRECUT and PANELIZED KIT form |
| 24” o.c. stud spacing | 16” o.c stud spacing |
| Flush Gable Ends and Eaves | 6” Gable Overhang |
| 8” Grooved LP SMARTSIDE Siding | 3” Eaves Overhang |
| Aluminum Corner Trim | 4” Grooved LP SMARTSIDE Siding and Corner Trim |
INCLUDES:
- 6′ sidewalls with 16″ o.c. Wall Studs
- 5′ x 6′ Double Door Opening for 10 ft. to 12 ft. wide units, 4′ x 6′ Double Door Opening for 8′ wide units
- 2 Gable Vents
- Locking Door Handle
- Screws latches, and nails are included
- Premium LP smart side paneling treated to resist fungal decay and insect infestation, primed and ready for paint
NOTE: If you want to increase the shed door width by 2 feet kindly contact us at info@homesteadsupplier.com
CUSTOMER PROVIDES:
- Shingles
- Paint
- Runners
- Floor (if the building is not purchased with a floor kit)
- If you will be preparing a cement/concrete slab, it would have to be exactly the same size as the unit. If the concrete slab is larger then you would have to trim the 3” skirt that falls below the bottom plate that is designed to wrap around the flooring.
The above items can easily be purchased by the customer at a local hardware store.
OPTIONAL FLOOR KIT:
- 2×4 treated floor joists – 16” O.C
- 5/8″ plywood Flooring material
- The floor size should be exactly the same size as the building
If You're Building your own floor
- To build your own floor, the size of the floor will need to be the exact size of the shed
- We recommend a crushed stone base 1 wider on either side of the shed
- The siding overlaps the side of the wood floor roughly 3″ and there is no moisture barrier. You can put this on a cement slab or wood floor.
- Should you wish to purchase the 12x24 Floor Kit please contact us to get a shipping quote.
Do I need a Floor Kit? This depends on your preference. If you are not getting a floor kit from us, you can either build your own floor or create a cement slab for your shed. Please take note that it should be exactly the same size as the shed.
(If you are using a slab as the floor then it needs to be the exact size of the building. If it's used as a foundation, then you can have it in any size.)
Additional Info:
Base: We recommend a crushed stone base, 1 foot wider than the building on all sides.
ASSEMBLY MANUAL
GAMBREL BARN COMPARISON
 |
 |
 |
 |
| Value Gambrel Barn 6' Sidewalls | Classic Gambrel Barn 6' Sidewalls | Value Gambrel Barn 4' Sidewalls | Classic Gambrel Barn 4' Sidewalls |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
